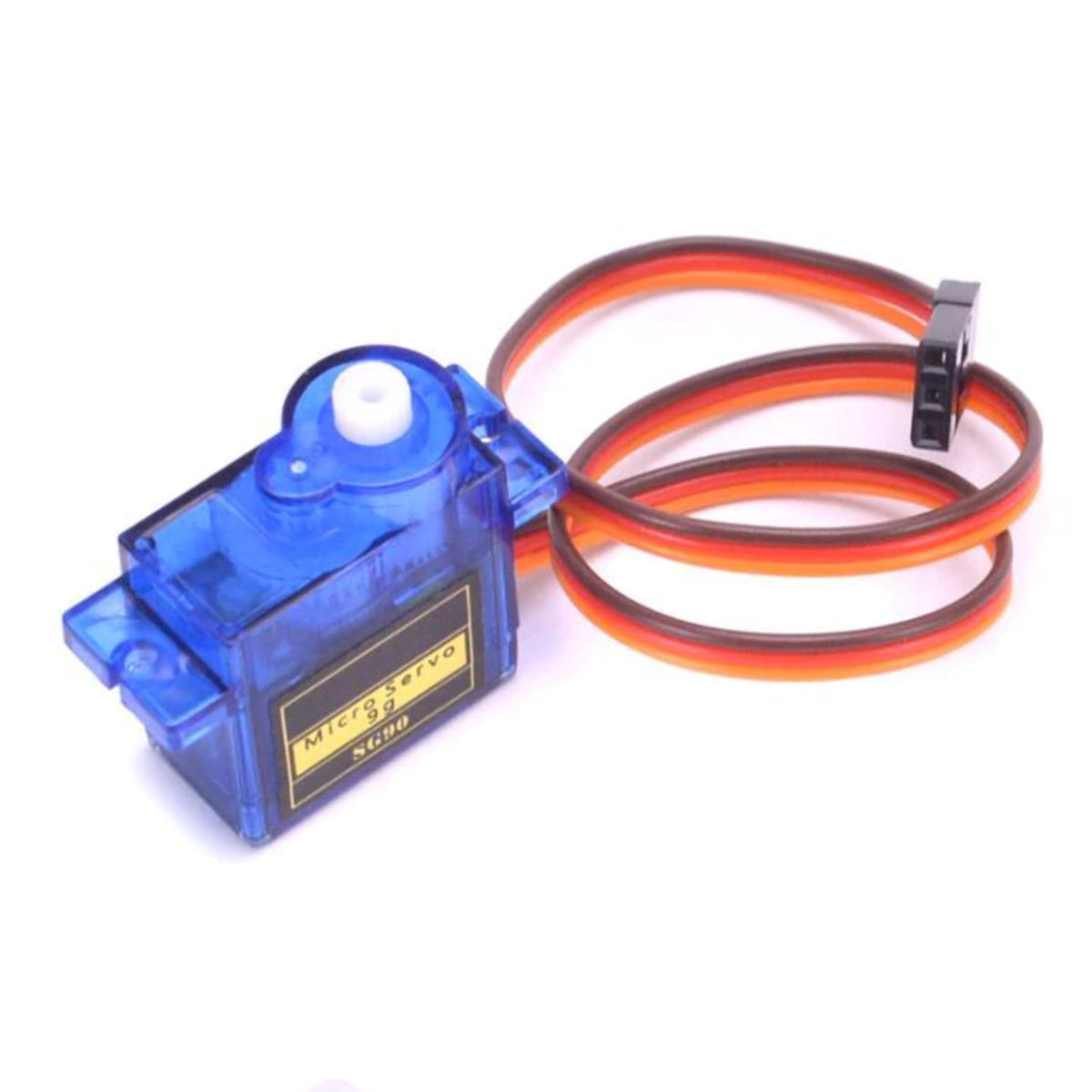

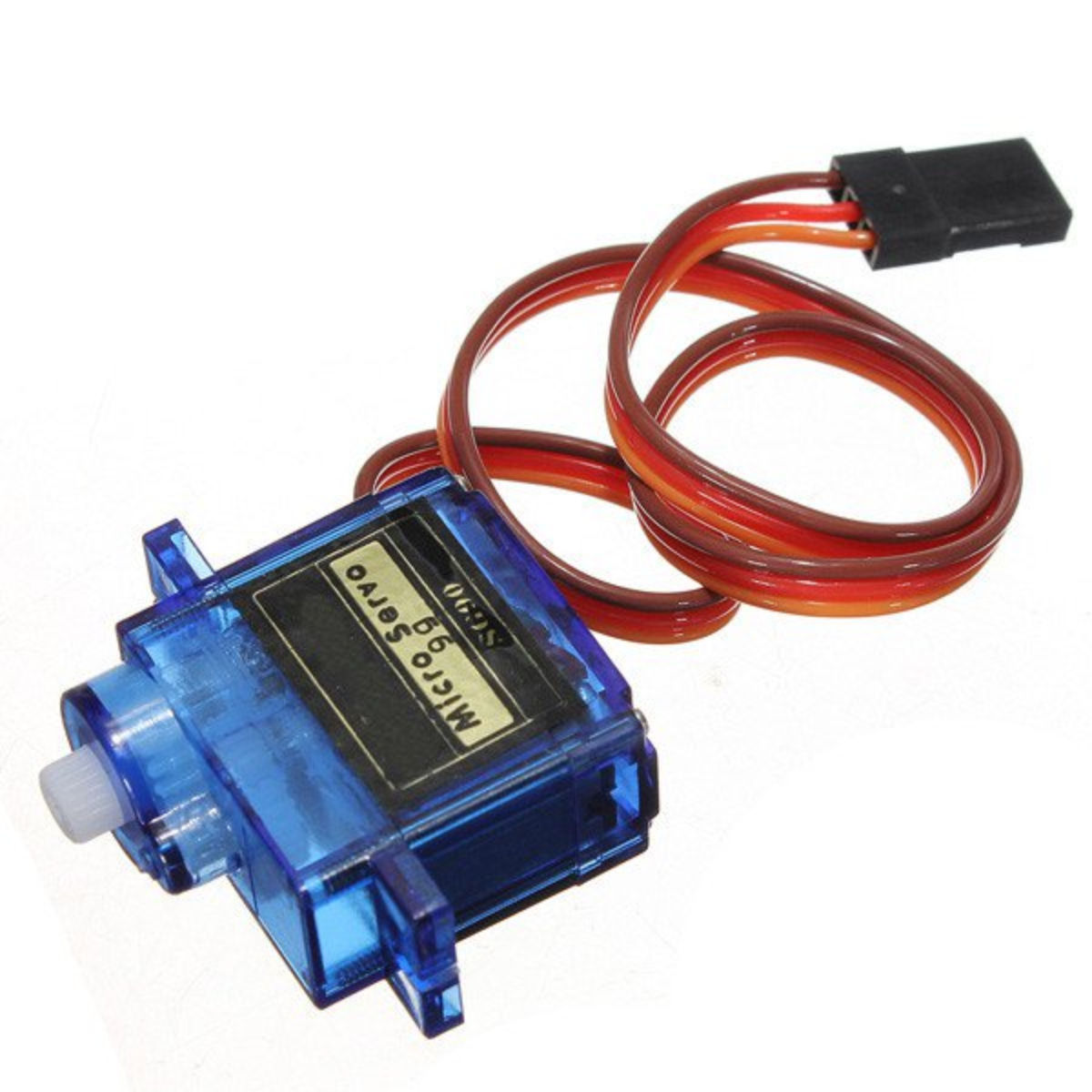

SG90 Servo motor
Approximately 180 degree movement
Ideal for model railway points and other modelling applications
Voltage range 4.8 to 6.0 Volts
Additional servo horns supplied
Dimensions 22mm wide, 12mm deep, 27mm high
SG90 Servo motor
Approximately 180 degree movement
Ideal for model railway points and other modelling applications
Voltage range 4.8 to 6.0 Volts
Additional servo horns supplied
Dimensions 22mm wide, 12mm deep, 27mm high
£2.49
196 in stock
SG90 Servo motor
Approximately 180 degree movement
Ideal for model railway points and other modelling applications
Voltage range 4.8 to 6.0 Volts
Additional servo horns supplied
Dimensions 22mm wide, 12mm deep, 27mm high
Weight | 3 kg |
---|
Our servo motors have an approximate 180 degree movement making them ideal for model railway layouts. They have a 250mm standard servo motor lead which can be extended using our servo extension leads which range from 100mm to 1000mm in length.
Our servos are ideal for use with our range manual servo controller or our IR remote control servo unit.
Typical idle current is 10mA. The current during movement ranges from 100 – 250 mA depending on the load applied.
Each servo is supplied with different types of servo horns and fittings to suit most micro applications.
